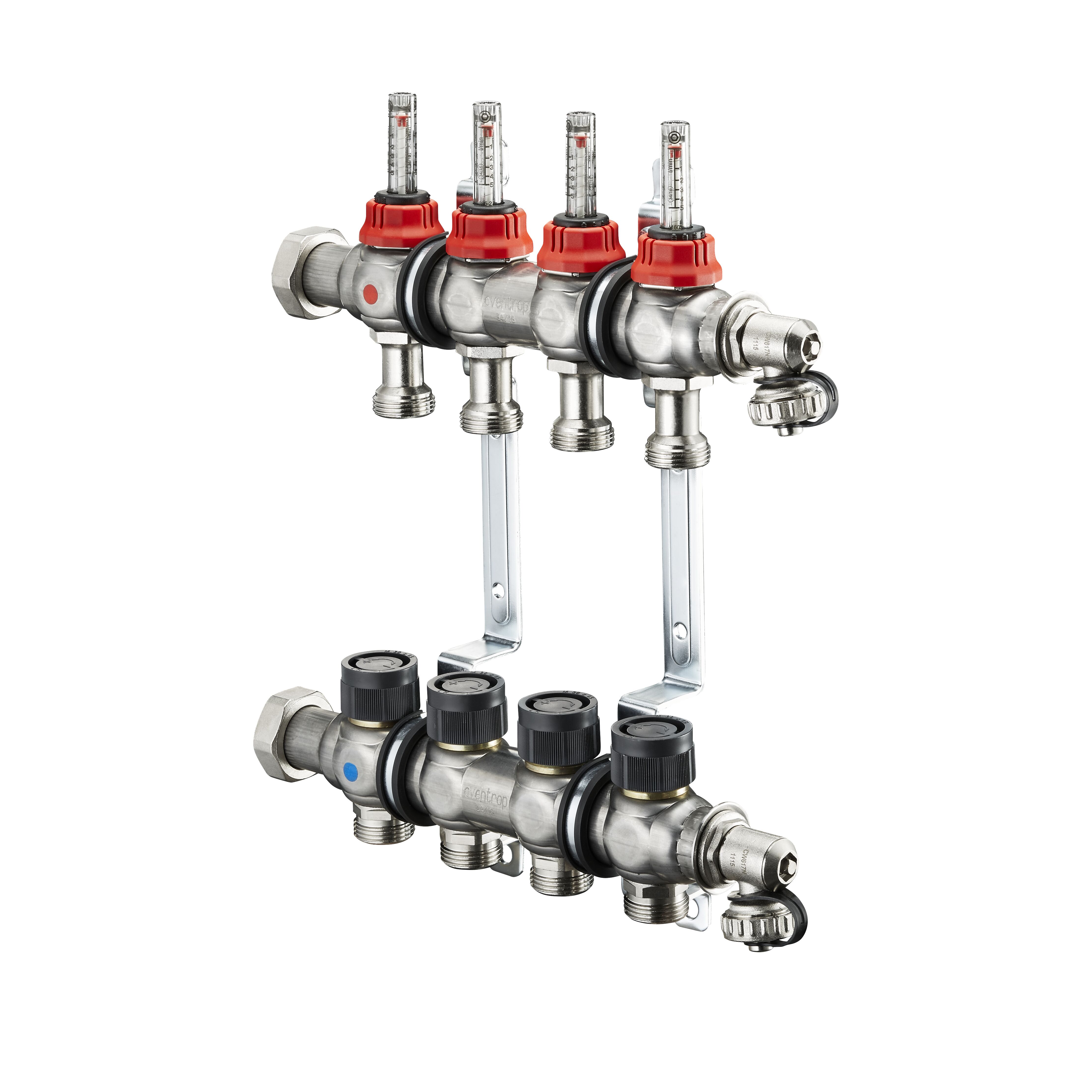

Oventrop Multidis SF Heating circuit manifold (2016) — with integrated flow measuring and regulating devices in the flow distributor, 0-5 l/min, 8 circuits
160.00 EUR
Multidis SF heating circuit manifold for surface heating and cooling systems, with valve inserts M 30 x 1.5 that can be thermostatically controlled and integrated regulating inserts, pre-assembled consisting of: Flow distributor made of stainless steel (1.4301) with integrated flow measuring and regulating devices (0-5 l/min.) - screw-in connection pieces, nickel-plated, with G ¾ externally threaded connection according to DIN EN 16313 Eurocone for Oventrop compression fittings - with G 1 internally threaded connection for the direct connection of a flat sealing ball valve - fill and drain cock with rotatable connection for hose fitting DN 15 - blind plugs G ¾, nickel-plated Return collector made of stainless steel (1.4301) with valve inserts M 30 x 1.5 - screw-in connection pieces, nickel-plated, with G ¾ externally threaded connection according to DIN EN 16313 Eurocone for Oventrop compression fittings - with G 1 internally threaded connection for the direct connection of a flat sealing ball valve - fill and drain cock with rotatable connection for hose fitting DN 15 - blind plugs G ¾, nickel-plated. Bracket (loosely added) made of galvanised steel for fixing the manifold inside the cabinet or onto the wall. Pipe clamps sound absorbing as per DIN 4109, sound insulation in building construction.
In stock
