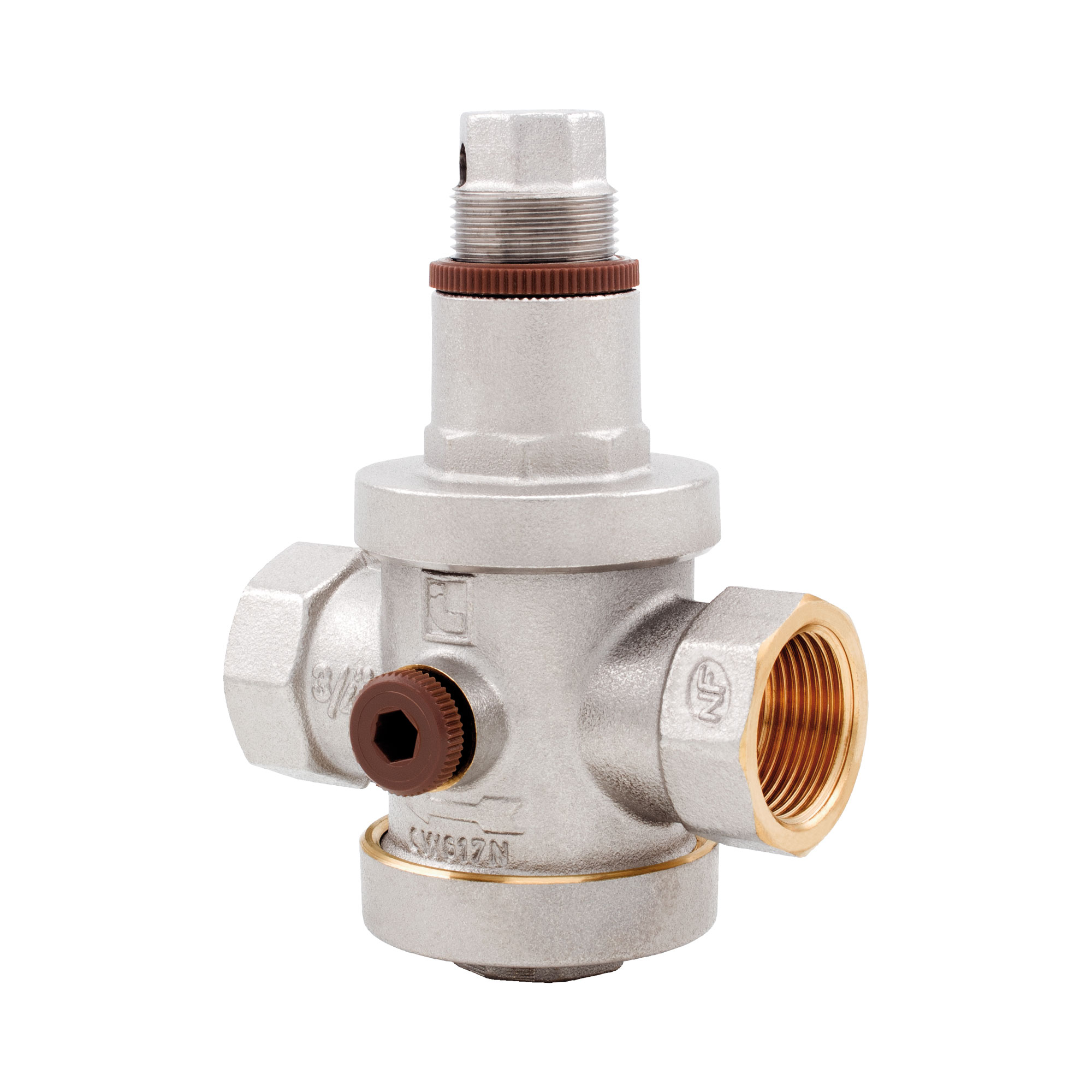

143 Europress pressure reducing valve
30.25 EUR
Compensated piston operation. Female/female threads. Body in nickel-plated brass. Minimum and maximum working temperatures: 0°C, 80°C. Maximum inlet pressure: 25 bar. Outlet pressure: 1/2” – 3/4” – 1” between 1 and 5,5 bar. 1”1/4 through 4” between 1 and 6 bar. Factory preadjustment 3 bar. Outlet pressure gauge connection 1/4” on both sides. Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228). Available also with NPT thread in the sizes 2”1/2 – 3” – 4”. NF approved in 1/2″ and 3/4″ sizes. WRAS approved in 1/2″, 3/4″ and 1″ sizes (approved to 25 bar for 1/2″ and 3/4″ – approved to 16 bar for 1″).
In stock
