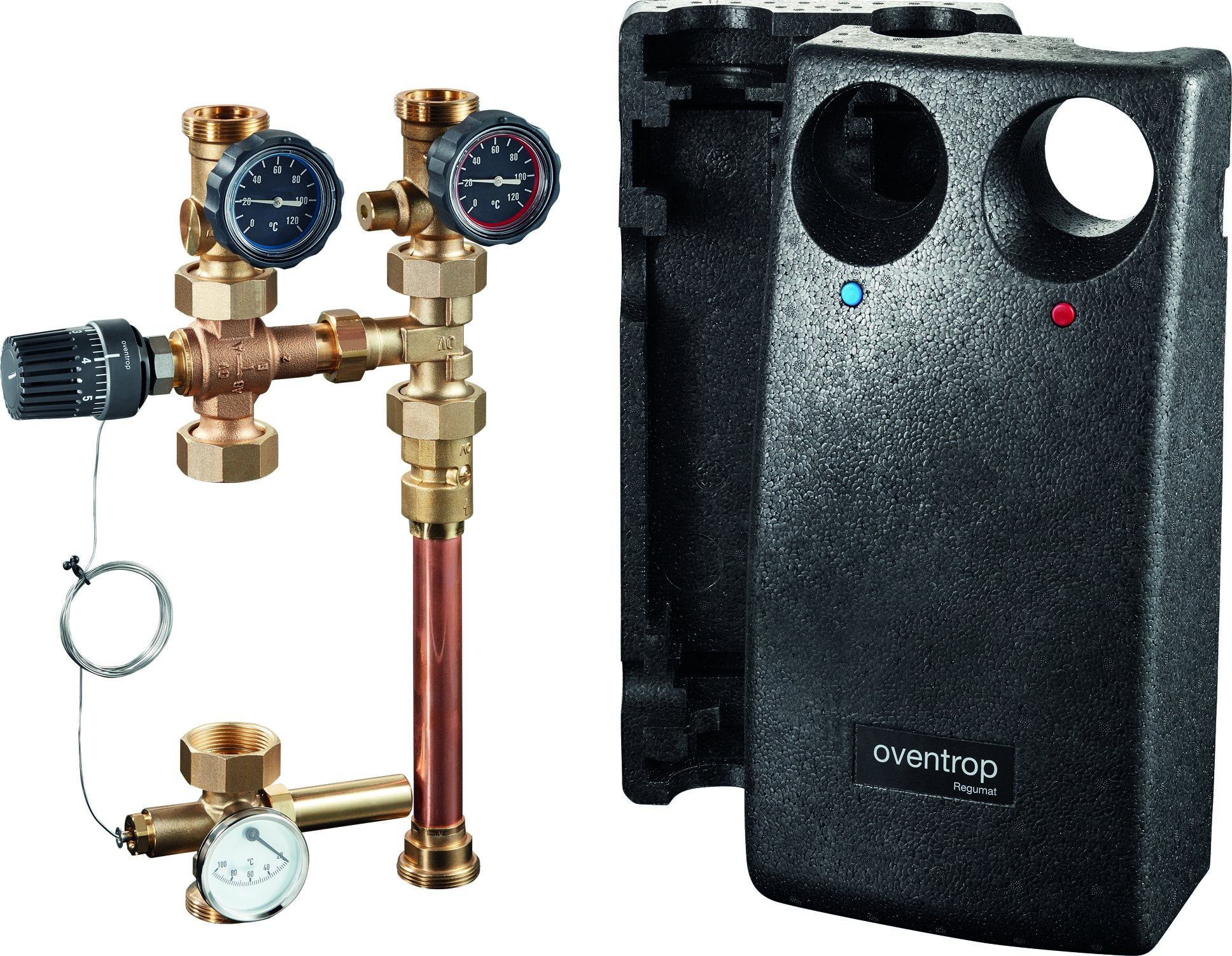

Oventrop Grup Pompe Regumat RTA-180
340.00 EUR
Add to watch list For the connection of a solid fuel boiler. The return temperature to the solid fuel boiler is at least approx. 55 °C and thus above the dew point. It prevents condensate tar formation. During start-up mode the boiler circuit is short circuited. Hot supply water is fed to the return flow via the bypass. When the return temperature of 55 °C is reached, the mixing valve opens. The stations consist of a shutoff device with two ball valves, two thermometers integrated in the handles to display the flow and return temperatures, a check valve to prevent incorrect circulation, a three-way mixing valve with temperature controller and a thermal insulation. The Regumat stations are characterised by a time- and space-saving installation of the boilers to the pipework systems. A high degree of functional reliability is ensured by maintenance-free components and high-quality materials. The stations can be modularly extended with various accessories. * Version: Return temperature increase * Nominal size: DN 25 * Connection heating circuit: G 1 1/2 external thread flat sealing * Connection heat generator: G 1 1/2 external thread flat sealing * Pump length: 180 mm * Pump type: without pump * Supply pipe: Right * Optional supply pipe change: No * Length: 211 mm * Width: 248 mm * Height: 513 mm * Length product assembly: 460 mm * Centre distance: 125 mm * Thermal insulation: Yes * Universal thermal insulation: No * Wall bracket: No * Shutoff: Yes * Pump ball valve: No * Pump ball valve with drain/flush valve: No * Overflow insert: No * Check valve: Yes * Opening pressure check valve: 20 mbar * Three-way mixing valve: Yes * Actuator: No * Temperature control: Thermostatic * Setting range: 40 - 70 °C * Safety temperature monitor: No * Kvs: 3.9 * Recommended application (∆T = 20K, ∆p = 100 mbar): 30 kW * Max. operating temperature: 85 °C * Max. operating pressure: 10 bar * Leak tested: No Art.-Nr.: 1354692
In stock
