Oventrop Kolektore Kalldaje Regumat Per 2 Pompa
425.00 EUR

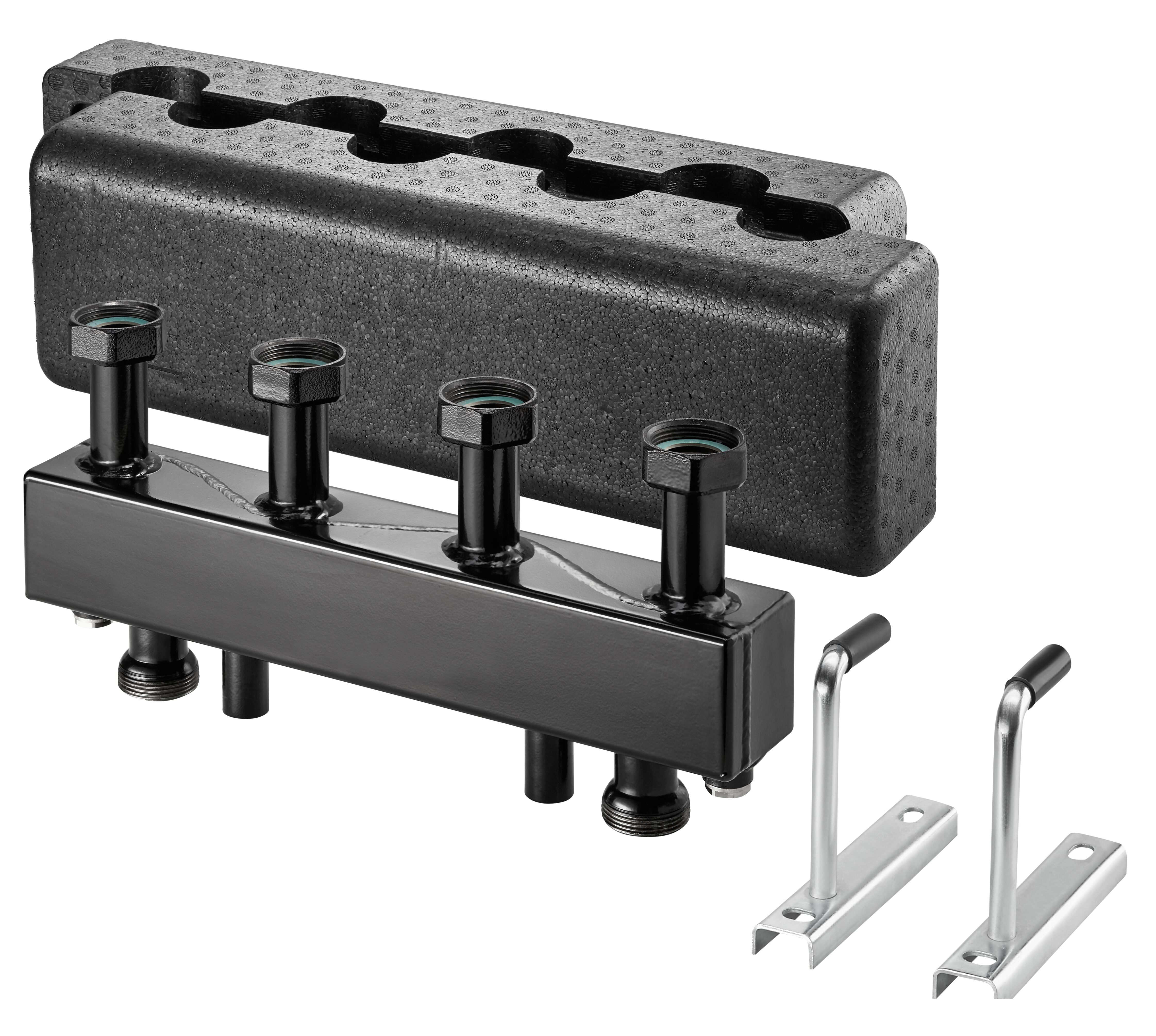

For mounting Regumat stations. For volume flow distribution, e.g. from the heat generator to several heating circuits. The distributors are characterised by a simple and space-saving installation. * Heating circuits: 2 * Connection heating circuit: G 1 1/2 union nut, flat sealing * Connection heat generator: G 1 1/2 external thread flat sealing * Centre distance: 125 mm * Body material: Steel * Thermal insulation: Yes * Material thermal insulation: Expanded polypropylene (EPP) * Wall bracket: Yes * Material wall bracket: Steel, galvanised * Max. flow rate: 4 m³/h * Recommended application (∆T = 20K, ∆p = 100 mbar): 95 kW * Max. operating temperature: 110 °C * Max. operating pressure: 4 bar Art.-Nr.: 1351582
In stock
