Oventrop Stacion Regusol SH-130 1"
306.00 EUR

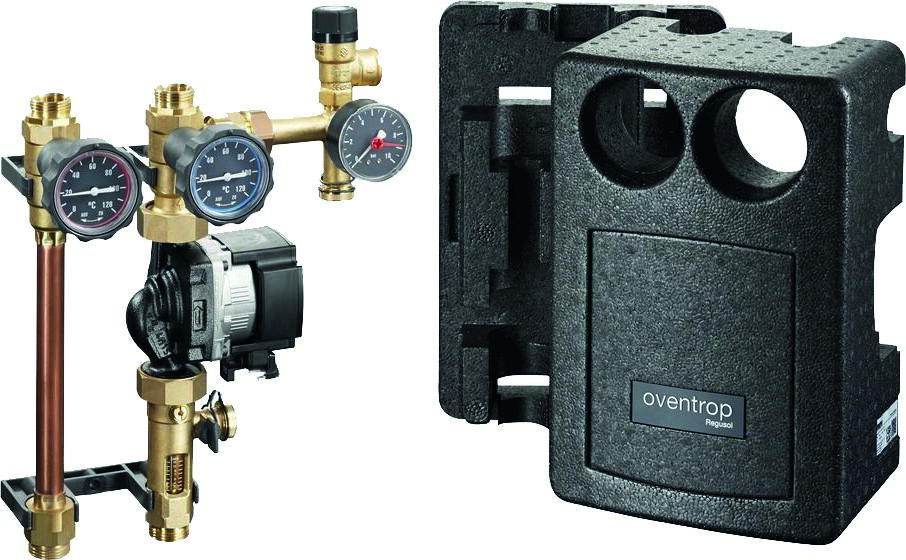

Add to watch list For the connection of a solar circuit. The stations enable the solar circuit to be shut off on the supply and return side and prevent self-circulation via integrated check valves when the pump is switched off. The stations consist of a high-efficiency pump, ball valves with integrated check valves and thermometers in the supply and return, a safety group with safety valve, pressure gauge, fill and drain cock and connection possibility of an expansion tank, a flow measuring and regulating device with shutoff and fill and drain cock, a wall mounting device and a thermal insulation. The Regusol stations are characterised by a time- and space-saving installation. A high degree of functional reliability is ensured by maintenance-free components and high-quality materials. * Version: Two pipe * Nominal size: DN 25 * Connection solar circuit: G 1 external thread for Regusol compression fittings * Connection storage cylinder circuit: G 1 external thread for Regusol compression fittings * Connection expansion tank: G 3/4 external thread flat sealing * Pump length: 130 mm * Pump type: Grundfos UPM3 W3 Solar 25-75 PWM * Length: 195 mm * Width: 250 mm * Height: 375 mm * Centre distance: 100 mm * Thermal insulation: Yes * Wall bracket: Yes * Dial thermometer: Yes * Check valve: Yes * Opening pressure check valve: 20 mbar * Safety valve: Yes * Pressure gauge: Yes * Venting: No * Volume flow sensor: No * Flow indicator: Yes * Measuring range of the flow measuring and regulating device: 2 - 15 l/min * Fill and drain cock: Yes * Electronic controller: No * Retrofitting controller insertion block: Yes * Max. operating temperature: 120 °C * Short-term starting temperature: 160 °C * Max. operating pressure: 6 bar Art.-Nr.: 1360063
In stock
