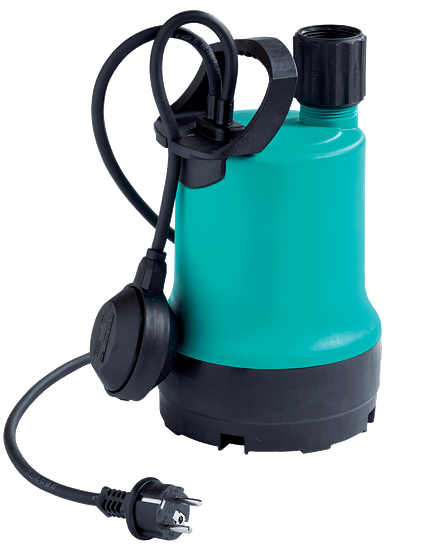

Wilo Drain Pompe Drenazhe TMR 32/11
185.00 EUR
Submersible pump for stationary and portable wet well installation. Pump with fitted float switch for fully automatic operation. For the pumping in domestic areas of: • Sewage not containing faeces • Wastewater (with small amounts of sand and gravel)Sewage pump with depth suction (pumping out up to 2 mm residual water level), open multi-channel impeller and vertical threaded connection. Pump housing, strainer and impeller made of composite material. 1~ motor (jacket cooling) with integrated operating capacitor and self-switching thermal motor monitoring. Stainless steel motor housing. Oil-filled sealing chamber with double sealing: a rotary shaft seal is installed on the motor side, a mechanical seal on the pump side. Connection cable with float switch and fitted plug (CEE 7/7). The pumps are submerged in fluid. The connection to the discharge line is normally made via a suspension unit. The pump can be lifted upwards out of the pump chamber for maintenance purposes. No screws need to be removed or water drained for this. The switching volume must be known for correct pump operation. The switching volume can be calculated by means of the difference between the activation and deactivation points. The deactivation point is determined by the operating mode for immersed and non-immersed operation of the motor.
In stock
